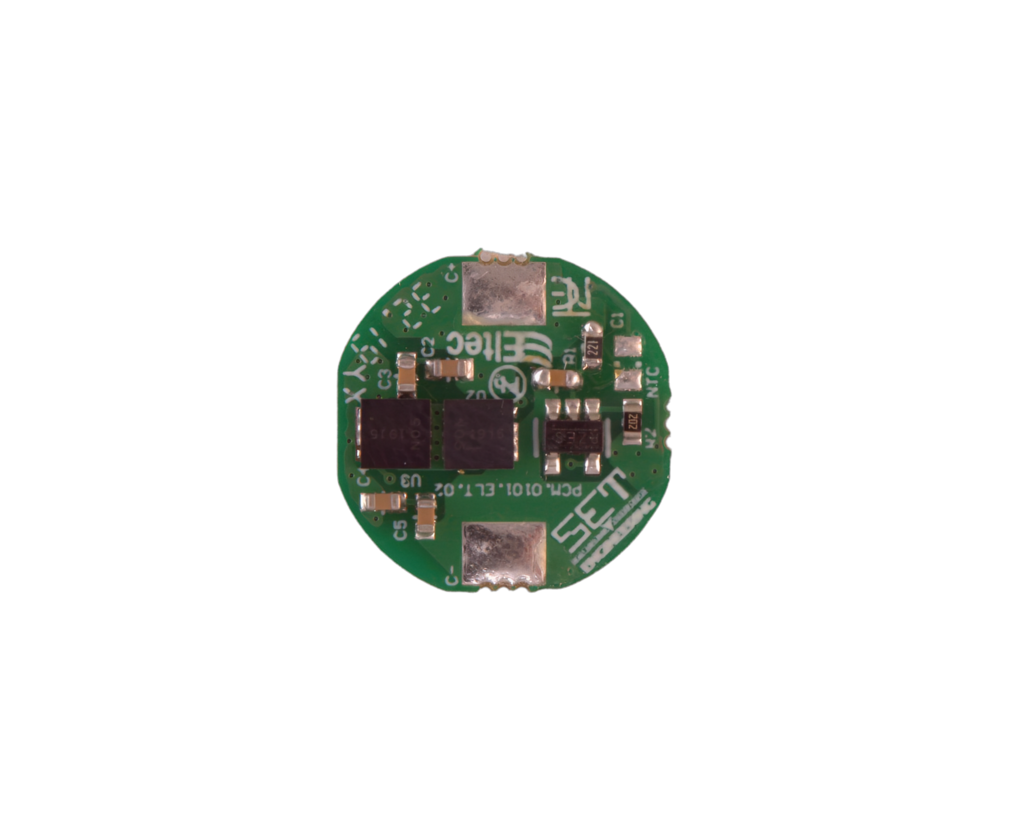

Protection circuit for single cell

Diameter: 16,5mm

Height: 2,3 mm

Charging/discharging rate: 7A

Protections:

• Undervoltage: 2.3V
• Overvoltage: 4.25V
• Discharge Overcurrent: 14A
• Charge Overcurrent: 10A

Short circuit

Static consumption: 7uA

Additional features: charge allowed from 0 V battery voltage

Operative temperature: from -20°C to 85°C
